The longest bridges in the world are, in large part, an erection problem. The structural forms are familiar: precast box girders on piers. What changes at scale is how many times one lifting and placing operation has to be repeated, and how little room there is for a bad cycle.

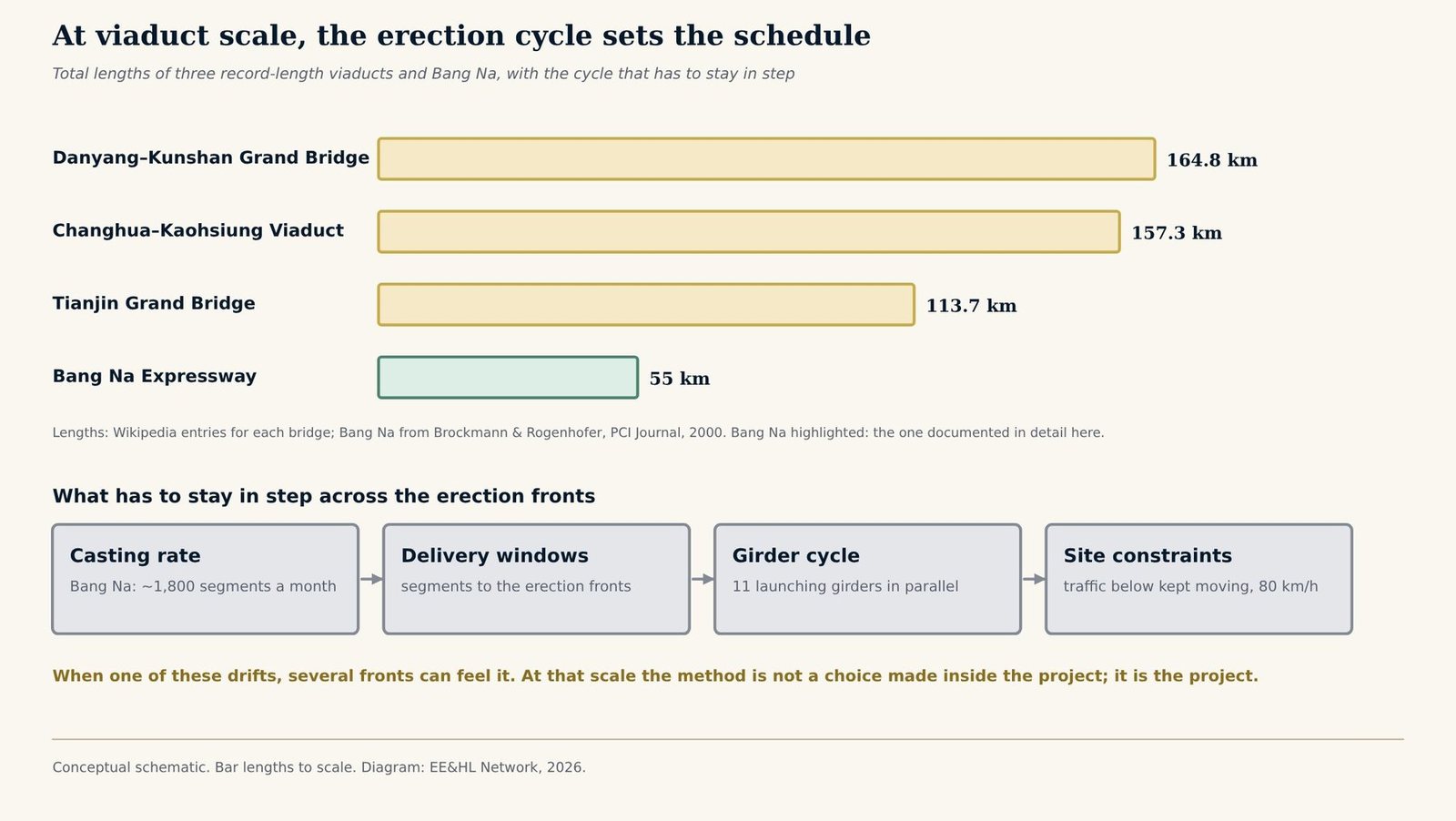

Three viaducts illustrate the scale: the Danyang–Kunshan Grand Bridge at 164.8 km, the Changhua–Kaohsiung Viaduct at 157.3 km and the Tianjin Grand Bridge at 113.7 km, more than 435 km between them. Published detail on how they were erected is thin in the sources reviewed here. For Tianjin, one account says 32 m box girders weighing 860 t each were cast at two workplaces along the bridge and placed on the piers by a special crane.
A bridge becomes a production system
At sufficient scale the work stops being a sequence of unique operations and becomes thousands of near-identical cycles. The schedule is then set by cycle time, logistics and reliability rather than by the design of any one span. That is an editorial reading, and it is easiest to see in the one viaduct of this kind documented in detail on this site.
What the Bang Na Expressway documents
All figures are from the PCI Journal account; see the Bang Na Expressway case study for the full sequence.
Design follows the gantry
At Bang Na the designer developed the H-shaped column, the underslung truss and the mainline segments as one integrated approach. The column’s open upper arms exist so that the girder can pass through them. That is the practical meaning of saying that the design follows the gantry: the geometry is chosen so that the method can repeat.
Where the commercial exposure sits
A method that depends on casting rate, delivery windows and girder cycle staying locked together concentrates its risk in the coordination between them, not in any single item of equipment. When one cycle drifts, delay can reach several fronts that draw on the same yard, and delay of that kind is hard to attribute to one party. Whether it is priced at tender, and by whom, is a question the published accounts rarely answer. This is an editorial reading, not a finding from the sources reviewed.
For the equipment and techniques involved, see What Is a Launching Gantry?, What Is Match-Casting? and Erection Engineering in Bridge Construction.
Related case studies: Bang Na Expressway · Millau Viaduct · Oléron Viaduct · Woronora River Bridge · Sidu River Bridge
Sources: PCI Journal — Brockmann and Rogenhofer, Bang Na Expressway, January–February 2000; Wikipedia — Danyang–Kunshan Grand Bridge (length); Wikipedia — Tianjin Grand Bridge (length, girders and placement); Wikipedia — Changhua–Kaohsiung Viaduct (length). Erection methods for Danyang–Kunshan and Changhua–Kaohsiung are not stated in the sources reviewed and are not described here; rankings of the longest bridges differ between lists. An earlier version of the thinking in this article appeared as a LinkedIn post.
Frequently Asked Questions
It is an erection method in which a whole bridge span is assembled, or placed, in one operation from a launching girder or gantry running on the structure, and the equipment then advances to the next span. Repeated over many spans it becomes a production cycle.
Because the same operation is repeated thousands of times, so schedule depends on cycle time, logistics and reliability. A small delay in one cycle can repeat across several fronts that depend on it.
The PCI account points to the casting yard and the launching girders. About 1,800 segments a month came from one yard, and eleven launching girders erected about 2,100 m of mainline deck and 2,500 m of ramp deck a month, all under a condition that traffic below never stopped.
According to Wikipedia, the Danyang–Kunshan Grand Bridge in China is 164.8 km, the Changhua–Kaohsiung Viaduct in Taiwan 157.3 km and the Tianjin Grand Bridge in China 113.7 km. Rankings vary between lists and over time.
