The self-launching erection machine that moves pier to pier — and depends on the next one being ready
Definition
A launching gantry — also called a launch gantry or, in some markets, a launching girder — is a self-launching steel erection machine used to place precast concrete bridge segments span by span or in balanced cantilever configuration. Overhead gantries work from above the deck level; underslung gantries work from below. The gantry spans between bridge piers — typically one or two spans — and lifts segments from a supply train or delivery vehicle below, transporting and positioning each segment to its designed location. When one span is complete, the gantry launches itself forward over the next pier and the process repeats.
Launching gantries are one of the principal erection systems for precast segmental bridge construction worldwide. They eliminate the need for cranes, falsework or access roads in the spans, making them particularly suited to viaducts over water, difficult terrain, or live traffic.
Gantry size and weight are properties of the individual machine, matched to span, segment weight and site access, and stated by the supplier or the erection designer — there is no general figure. The scale involved is better shown by a specific case: at the Jamuna Multipurpose Bridge in Bangladesh, the designer records that the precast segments were erected by balanced cantilever using a 210-metre steel truss gantry, placing 1,263 deck segments across 49 spans of a river crossing where ground access beneath the deck was not available.
Gantry Types and Working Methods
Overhead gantries work from above the deck. The main girder spans between piers, with lifting winches or strand jacks suspended below. Segments are picked from delivery vehicles below, lifted and placed from above. The gantry moves forward by launching itself over the next pier on sliding bearings or rolling bogies.
Underslung gantries work from below the deck soffit, with the main structure hanging between pier brackets. They are less common but used where overhead clearance is restricted.
In span-by-span erection, the gantry places all segments for one span simultaneously or sequentially, then launches forward. In balanced cantilever erection, the gantry places segments alternately on each side of a pier, advancing the cantilever symmetrically.
The Pier Dependency
A launching gantry normally cannot advance to the next span until the forward pier is structurally ready to accept the gantry nose. The pier must be at the correct elevation, with its pierhead formed and cured to specification, before the gantry can launch. This creates a hard sequence dependency: pier delivery controls gantry advance.
The commercial consequence is direct. A gantry mobilised at day-rate — with crew, erection supervision, maintenance and financing costs running — generates cost whether it is erecting segments or waiting at a pier that is not ready. The decisions that delay a pier — approval chains, supply issues, access delays — are made by people who rarely see the gantry day-rate.
Tap to enlarge

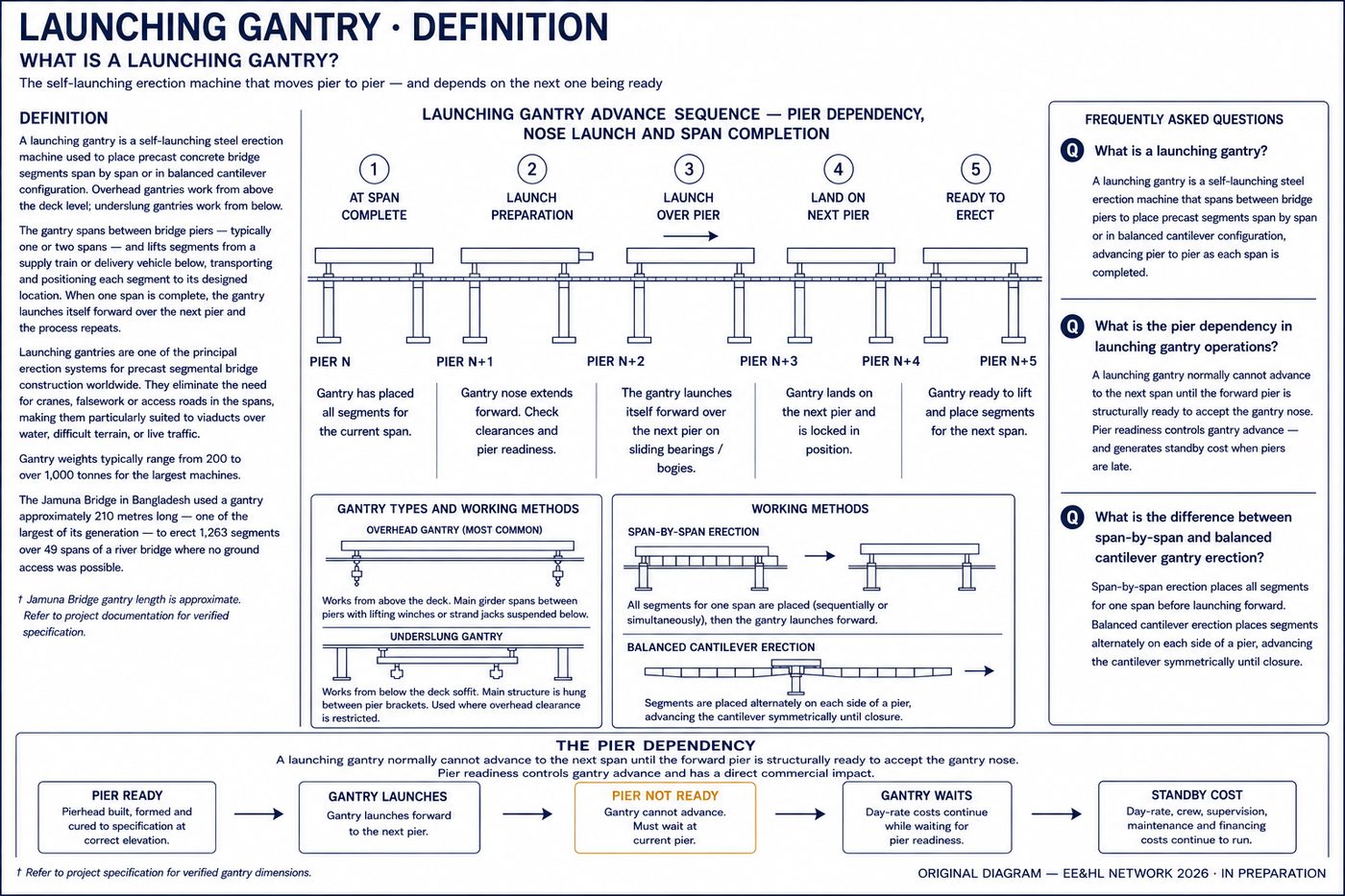

Launching gantry advance sequence — pier dependency, nose launch and span completion
Original diagram — EE&HL Network 2026
Diagram: Original — EE&HL Network 2026
Frequently Asked Questions
A launching gantry is a self-launching steel erection machine that spans between bridge piers to place precast segments span by span or in balanced cantilever configuration, advancing pier to pier as each span is completed.
A launching gantry normally cannot advance to the next span until the forward pier is structurally ready to accept the gantry nose. Pier readiness controls gantry advance — and generates standby cost when piers are late.
Span-by-span erection places all segments for one span before launching forward. Balanced cantilever erection places segments alternately on each side of a pier, advancing the cantilever symmetrically until closure.
The two main types are overhead gantries, which work from above the deck with the lifting equipment suspended below the main girder, and underslung gantries, which work from below the deck soffit supported on pier brackets. Underslung gantries are less common and are used where overhead clearance is restricted.
