What makes the SoFi Stadium canopy a relevant erection case is not its appearance, but the role it had to play during construction. The cable-supported canopy was erected over an excavation approximately 100 ft (30 m) deep, at a stage when the stadium bowl below could not yet provide stiffness or participate in load sharing.

For a significant phase of the works, the canopy had to be treated as a stand-alone structural system, relying entirely on temporary conditions rather than on the permanent stadium beneath it.

≈30 m
Excavation depth
≈93,000 m²
Canopy area
≈305 m
Longitudinal span
≈240 m
Transverse span

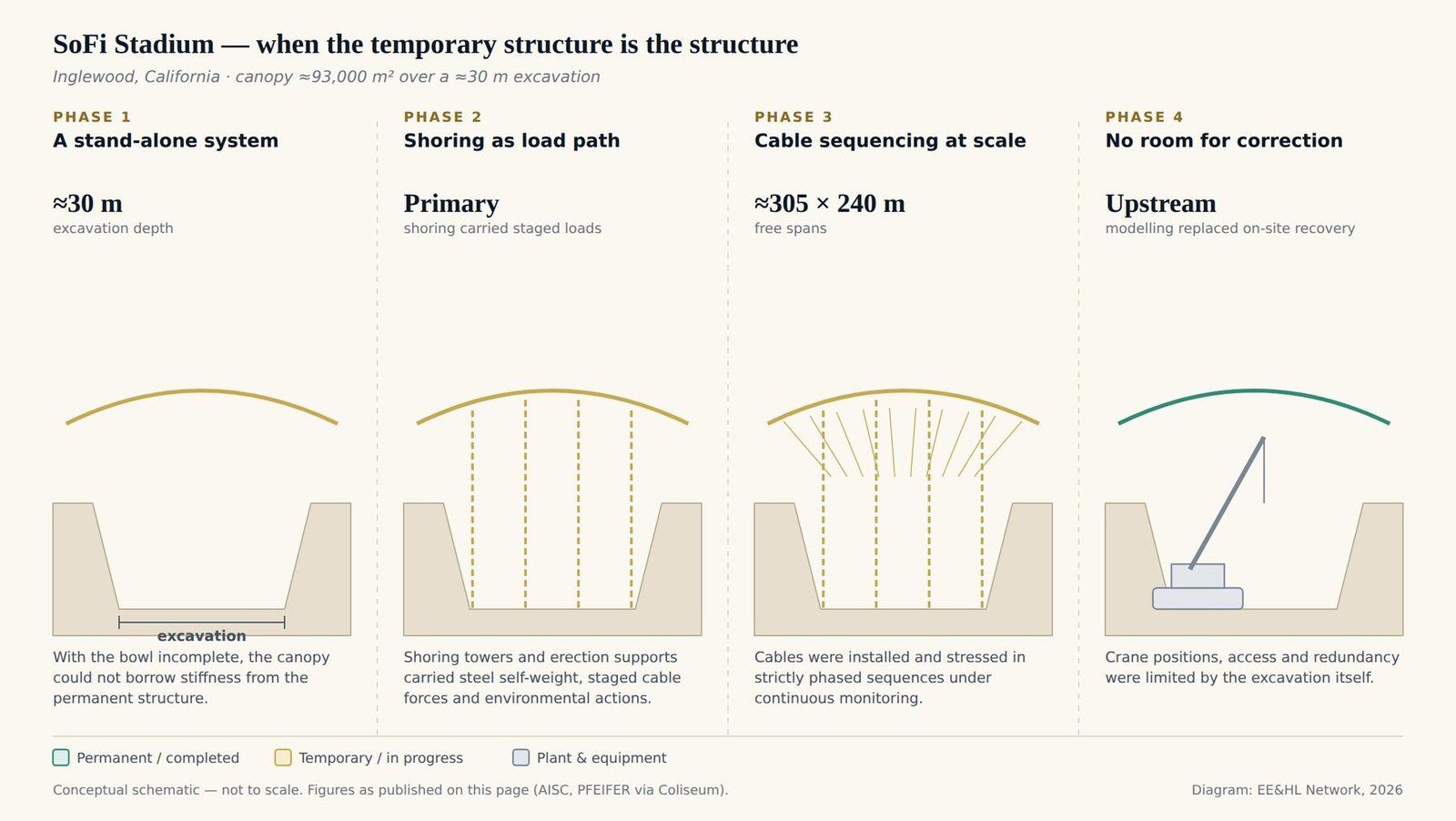

Phase 1 — A stand-alone structural system
No stiffness to borrow from below
With the stadium bowl still incomplete over a roughly 30 m excavation, the canopy could not draw on the permanent structure for stiffness or load sharing. For a significant phase, it functioned as its own complete structural system, independent of the building it would eventually crown.
Phase 2 — Temporary shoring as primary load path
Verified to the same standard as the final structure
Temporary shoring towers and erection supports acted as primary load-carrying elements, supporting steel self-weight, staged cable forces, and environmental actions while the final load path was still incomplete. As a result, the temporary works required permanent-structure-level verification — global stability, second-order effects, and construction-stage load combinations.
Phase 3 — Cable sequencing at scale
A shrinking margin for correction
Across free spans of roughly 305 m longitudinally and 240 m transversely, small deviations in cable force or geometry could cause meaningful redistribution effects. Cable installation and stressing followed strictly phased sequences, supported by continuous monitoring — and as equilibrium was approached, the available correction margin reduced quickly.
Phase 4 — No room for on-site correction
Risk control shifted upstream
Erection was further constrained by the excavation itself: crane positioning, access at formation level, and redundancy were all limited, leaving little room for recovery. Risk control therefore depended on accurate construction-stage modelling, realistic sequencing, and disciplined execution — not on fixing problems after they appeared on site.

For a significant period, stability, geometry, and load paths depended on temporary supports and cable staging, not on the completed stadium bowl.

SoFi Stadium stands as a clear example of when the temporary structure is the structure: a canopy engineered to serve as a fully self-sufficient system for as long as the permanent building beneath it remained incapable of sharing any of the load.

For further reading on temporary structural states, see What is Temporary Works & Erection Strategy?

Related case studies: The Sphere · Singapore Sports Hub · Eiffel Tower

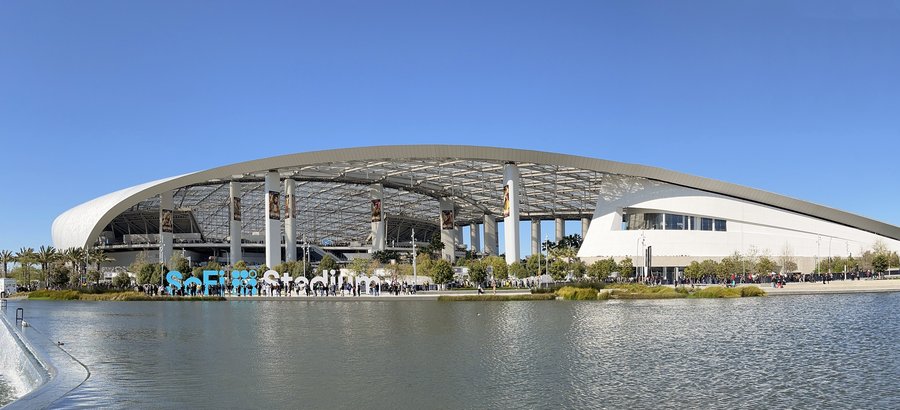

SoFi Stadium's translucent ETFE canopy roof viewed from ground level beside the lake at its entrance plaza, Inglewood, California
SoFi Stadium's canopy roof, Inglewood, California, 2023. Resized from the original for web display.
Photo: Troutfarm27, via Wikimedia Commons, CC BY-SA 4.0.

Sources: American Institute of Steel Construction — the double cable-net system, seismic isolation of the canopy columns, and the performance-based nonlinear dynamic analysis; PFEIFER via Coliseum — the cable-net contractor on why the bowl structure could not carry the cable grid's dead load, let alone the dynamic loads during jacking and erection, at pinning forces around 2,000 kips; ETS — roof composition and panel counts. Published ETFE panel counts vary between 302 and 309, and canopy area between roughly 75,000 m² and 1.3 million ft² depending on whether the full roof or the ETFE skin alone is measured.

Frequently Asked Questions

The cable-supported canopy was erected over an excavation approximately 100 ft (30 m) deep, at a stage when the stadium bowl below could not yet provide stiffness or participate in load sharing. For a significant phase of the works, the canopy had to be treated as a stand-alone structural system, relying on temporary conditions rather than the permanent stadium beneath it.

During erection, temporary shoring towers and erection supports acted as primary load-carrying elements, supporting steel self-weight, staged cable forces, and environmental actions while the final load path was still incomplete. As a result, the temporary works required permanent-structure-level verification, including global stability, second-order effects, and construction-stage load combinations.

The canopy covers roughly 1 million sq ft (about 93,000 m²), with free spans of about 305 m longitudinally and 240 m transversely. At that scale, small deviations in cable force or geometry could lead to meaningful redistribution effects, so cable installation and stressing followed strictly phased sequences supported by continuous monitoring. As equilibrium was approached, the available correction margin reduced quickly.

Erection was further constrained by the excavation itself — crane positioning, access at formation level, and redundancy were limited, leaving little room for recovery. Risk control therefore shifted upstream, relying on accurate construction-stage modelling, realistic sequencing, and disciplined execution rather than on-site correction.
