50,000-Ton Skid: The Onshore Heavy Lift Behind Bullwinkle
Gulf of Mexico, USALoadout May 1988Single-Piece Steel Jacket
In May 1988, before Bullwinkle could sail, its approximately 50,000-ton steel jacket — over 1,365 ft long — was transferred from land to Heerema's purpose-built launch barge H-851 — 851 ft × 207 ft and the largest cargo barge in the world at the time. This was far more than simply sliding a structure forward: it was a carefully choreographed sequence of engineering steps.
50,000 t
Jacket mass
>1,365 ft
Jacket length
14
Assembly sections
1,400 ft
Skidway length
77 ft
Land-to-barge gap
Assembly
The jacket was assembled in 14 sections along two parallel 1,400-ft skidways spaced 140 ft apart. Before loadout, all temporary supports were removed, leaving the jacket supported only by the two main skidways under its trusses.
Transfer
During the transfer, the jacket crossed a 77-ft span from yard to barge. At one end, its top extended 350 ft past the tilt beam; at the other, its base cantilevered about 68 ft beyond the barge bow. This created a highly non-uniform weight transfer that demanded precise control throughout.
Barge ballasting
The barge was ballasted continuously to keep its deck aligned with the skidways. Even small differences in level could have caused binding, overstress, or loss of controlled support transfer in the jacket structure — the scale of the operation significantly limited corrective options during transfer.
Real-time monitoring
A computer-assisted survey system tracked deflections of the jacket and barge in real time, comparing measured behaviour against predicted and allowable values across the full duration of the transfer. Per the OTC loadout analysis paper, actual jacket and barge behaviour remained within the bounds established by pre-loadout analysis.
Engineering consequence
The critical challenge was not moving 50,000 tons. It was controlling how support reactions changed as the jacket crossed from fixed yard supports onto a floating structure whose draught and attitude changed continuously throughout the transfer. As each increment of jacket weight moved from skidway to barge, the load distribution between the two support systems shifted — creating intermediate structural states that had to be pre-analysed, then verified in real time against the survey data. The analysis and the monitoring system were not independent tools: the analysis gave the allowable bounds; the monitoring confirmed whether the operation stayed within them.
Sometimes the onshore transfer is the unsung hero of offshore milestones. Bullwinkle proved that.
Bullwinkle set a benchmark for onshore loadout operations. The controlled skidding, precise load monitoring, and real-time deflection survey it required were not optional enhancements — they were the conditions that made the transfer possible at the scale attempted. The offshore record Bullwinkle held on installation was made possible by what happened on land.

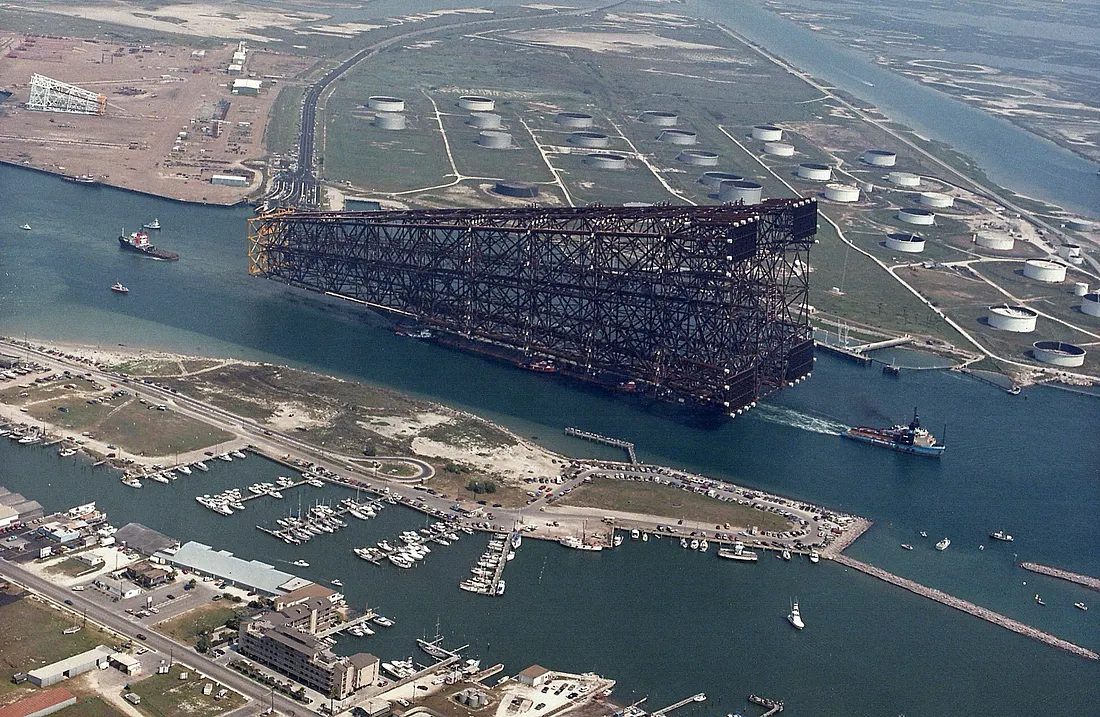

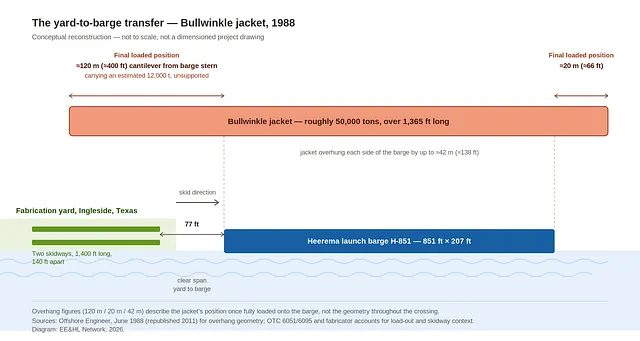

The Bullwinkle jacket under tow, 1988, following its load-out onto Heerema's launch barge H-851. Photo: Jay Phagan, CC BY 2.0.The yard-to-barge transfer — the 77-foot gap between the fabrication yard's skidways and Heerema's launch barge H-851, with the jacket's overhang once fully loaded. Diagram: EE&HL Network, 2026. Conceptual reconstruction — not to scale.
Common questions on the Bullwinkle jacket loadout, answered from the OTC fabrication and loadout-analysis papers.
Approximately 50,000 tons (OTC fabrication paper OTC 6051 cites 49,000 tons; 50,000 tons is the standard industry rounding used at loadout). This made it one of the heaviest single-piece jacket structures ever transferred to a launch barge.
The jacket was skidded horizontally along two parallel 1,400-ft concrete skidways spaced 140 ft apart, crossing a 77-ft clear span from the yard to Heerema's launch barge H-851. Continuous barge ballasting and a computer-assisted survey system tracked deflections in real time against predicted allowable values throughout the transfer.
Heerema's launch barge H-851, 851 ft × 207 ft — purpose-built for large jacket loadouts and the largest cargo barge in the world at the time. The Bullwinkle jacket was its first major assignment.
The jacket's length exceeded the barge, creating large cantilever overhangs at both ends during transfer. This produced a highly non-uniform weight distribution that changed continuously as the jacket advanced. Barge ballasting had to be adjusted in real time to prevent level differences that could have caused binding or overstress in jacket members.
Several factors combined to make the Bullwinkle loadout uniquely demanding: the jacket was longer than the barge, producing large cantilever overhangs at both ends; the support reactions changed continuously and non-uniformly throughout the transfer as the jacket's centre of gravity moved relative to both yard and barge supports; barge trim had to be actively managed against a floating structure whose draught and attitude changed as load transferred onto it; and a computer-assisted deflection survey system had to confirm that measured behaviour matched pre-loadout predictions at every stage of the transfer.
Yes. The jacket — approximately 50,000 tons and over 1,365 ft long — was among the largest single-piece jacket structures ever transported and installed, a benchmark that held for decades after 1988. The completed Bullwinkle platform was also the world's tallest offshore platform at the time, installed in Green Canyon Block 65 in 1,353 ft of water.
