The self-propelled modular transporters that move what cranes cannot reach and lorries cannot carry
Definition
SPMTs — self-propelled modular transporters — are multi-axle hydraulic platform vehicles used to transport heavy, oversized and structurally sensitive loads in industrial and construction environments. Each axle line is independently steered and hydraulically suspended, allowing the platform to compensate for ground undulations and maintain controlled load sharing within defined stroke, stability and ground-bearing limits. Multiple units are coupled side-by-side and end-to-end to create a transport platform matched to the size and weight of the load. Capacities range from a few hundred tonnes to tens of thousands of tonnes for large arrays.
SPMTs are used wherever a load is too heavy for road transport, too large for crane handling, or too structurally sensitive to be lifted without distributed support. Bridge girders too long for a low-loader, offshore modules too heavy for road haulage, reactor vessels, port cranes, stadium roof sections and power station components have all been moved by SPMT.
The modern SPMT was commercialised in the early 1980s — Mammoet and Scheuerle introduced the technology in 1983 — originally for port operations and offshore module transportation. It has since become the standard method for load-out operations — moving completed structures from fabrication yards onto barges or offshore platforms.
How SPMTs Work
Standard SPMT axle lines commonly operate around 30–40 tonnes, with many Scheuerle/Mammoet configurations rated up to 44 tonnes per axle line and some specialist variants higher still. A standard 4-axle module carries 120–160 tonnes; a 6-axle module carries proportionally more. Lines are coupled in parallel to distribute load across a wider footprint. The coupled array is controlled from a single operator console, with all steering and propulsion synchronised electronically.
The hydraulic suspension system is the key feature. Each axle can travel independently through its vertical stroke, allowing the platform to compensate for ground undulations and maintain controlled load sharing within defined stroke, stability and ground-bearing limits. This allows SPMTs to transport structures that cannot tolerate differential displacement — long bridge girders, precision equipment, large process vessels.
Steering is all-wheel, allowing the complete array to move in any direction — forward, sideways, diagonally — and to perform complex manoeuvres in confined spaces that road vehicles cannot replicate.
Commercial Applications
Load-out — moving completed modules from the fabrication yard onto barges — is one of the largest SPMT applications. On offshore projects, the load-out programme is on the critical path: delay to SPMT operations delays barge departure, vessel scheduling and offshore installation. Day-rates accumulate across the entire offshore campaign.
Bridge beam installation uses SPMTs to move pre-assembled bridge spans into position overnight on live road networks, replacing crane operations that would require extended road closures.
Industrial relocations use SPMTs to move complete plant items — reactors, heat exchangers, large compressors — between locations within a refinery or petrochemical complex without disassembly.
Tap to enlarge

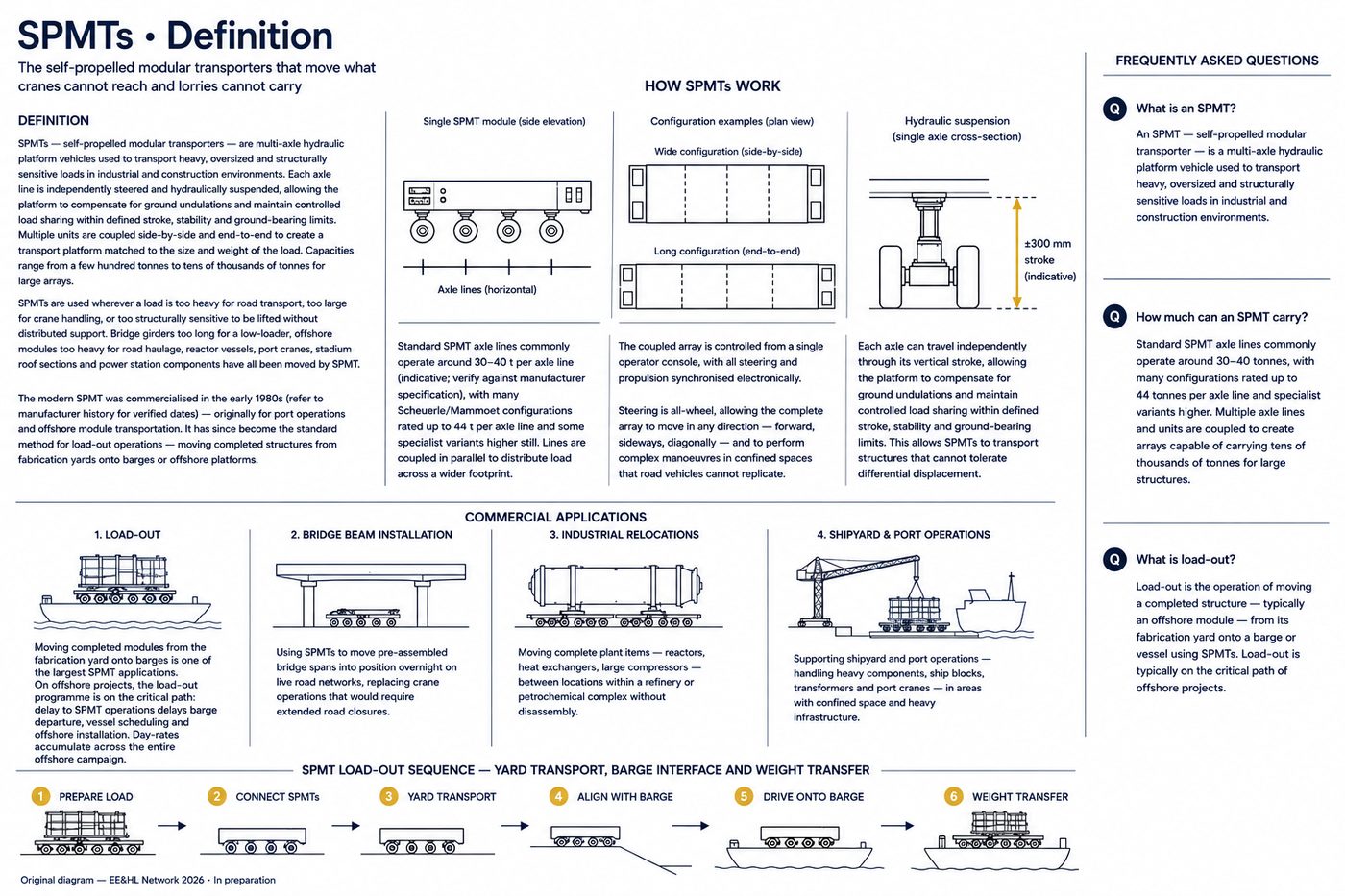

SPMTs — how they work, configuration types, commercial applications and load-out sequence
Original diagram — EE&HL Network 2026 · In preparation
Diagram: Original — EE&HL Network 2026
Frequently Asked Questions
An SPMT — self-propelled modular transporter — is a multi-axle hydraulic platform vehicle used to transport heavy, oversized and structurally sensitive loads in industrial and construction environments.
Standard SPMT axle lines commonly operate around 30–40 tonnes, with many configurations rated up to 44 tonnes per axle line and specialist variants higher. Multiple axle lines and units are coupled to create arrays capable of carrying tens of thousands of tonnes for large structures.
Load-out is the operation of moving a completed structure — typically an offshore module — from its fabrication yard onto a barge or vessel using SPMTs. Load-out is typically on the critical path of offshore projects.
