The discipline that moves what standard construction cannot — and the commercial logic that governs it
Definition
Heavy lift engineering is the discipline of planning, engineering and controlling the movement, lifting and installation of loads that exceed the capacity of conventional construction equipment or require specialist vessels, cranes, transporters or marine assets to handle safely. It encompasses onshore crane lifts that exceed conventional capacity due to load weight, geometry, ground bearing limits, working radius or route constraints, offshore platform installation, float-over operations, SPMT load-out movements, barge transport of large structures, and the management of all associated marine and logistics operations.
The term covers a range of operations that share a common characteristic: the equipment used is highly specialised, expensive to mobilise, and generates significant cost whether it is working or standing by. Heavy lift engineering is therefore inherently a commercial discipline as well as a technical one. Heavy lift engineering focuses on moving and placing major loads; erection engineering focuses on the sequence, stability and temporary conditions required to assemble the completed structure.
Industry participants include specialist contractors such as Mammoet, Sarens and Heerema, who operate the crane vessels, SPMT fleets and marine heavy lift equipment that make large-scale construction possible. ALE — formerly an independent heavy lift contractor — was acquired by Mammoet in 2020 and now operates under the Mammoet group. Equipment such as the Liebherr LTM 11200-9.1 mobile crane or the Heerema Thialf semi-submersible crane vessel represents major capital assets with mobilisation and standby costs that make every hour commercially significant.
Key Operation Types
Onshore heavy lifts use large mobile cranes, crawler cranes or strand jack systems to install equipment, structural modules or bridge components. Scope ranges from industrial plant installation — reactors, heat exchangers, pressure vessels — to precast bridge beam placement and stadium roof lifts.
Offshore heavy lift covers the installation of jacket substructures, topside modules, subsea equipment and pipeline infrastructure. Semi-submersible crane vessels and derrick barges are the primary installation assets for large offshore structures.
Marine transportation includes the movement of large structures on barges or semi-submersible heavy lift vessels — transport ships that partially submerge to float cargo on and off. Modules fabricated in one continent are regularly shipped to installation sites in another.
The Commercial Framework
Heavy lift equipment operates on day-rates. A large offshore crane vessel can represent a six-figure daily exposure on-hire — regardless of whether it is lifting, waiting for weather, waiting for a structure that is not ready, or standing by during an approval process. Published market reports and vessel operators have cited rates in this range, though current rates vary by vessel class and market conditions. This creates the fundamental commercial tension in heavy lift engineering: the decisions that control standby exposure are often made by people who do not see the day-rate.
The window for offshore heavy lift operations is weather-dependent. If a vessel mobilises, transits to location and finds that the installation window is not met — because of weather, because a structure is not ready, or because an approval is outstanding — the day-rate accumulates against zero productive output. Heavy lift engineers price this risk explicitly. Commercial managers track it daily. The engineering teams whose decisions affect it often do not.
Tap to enlarge

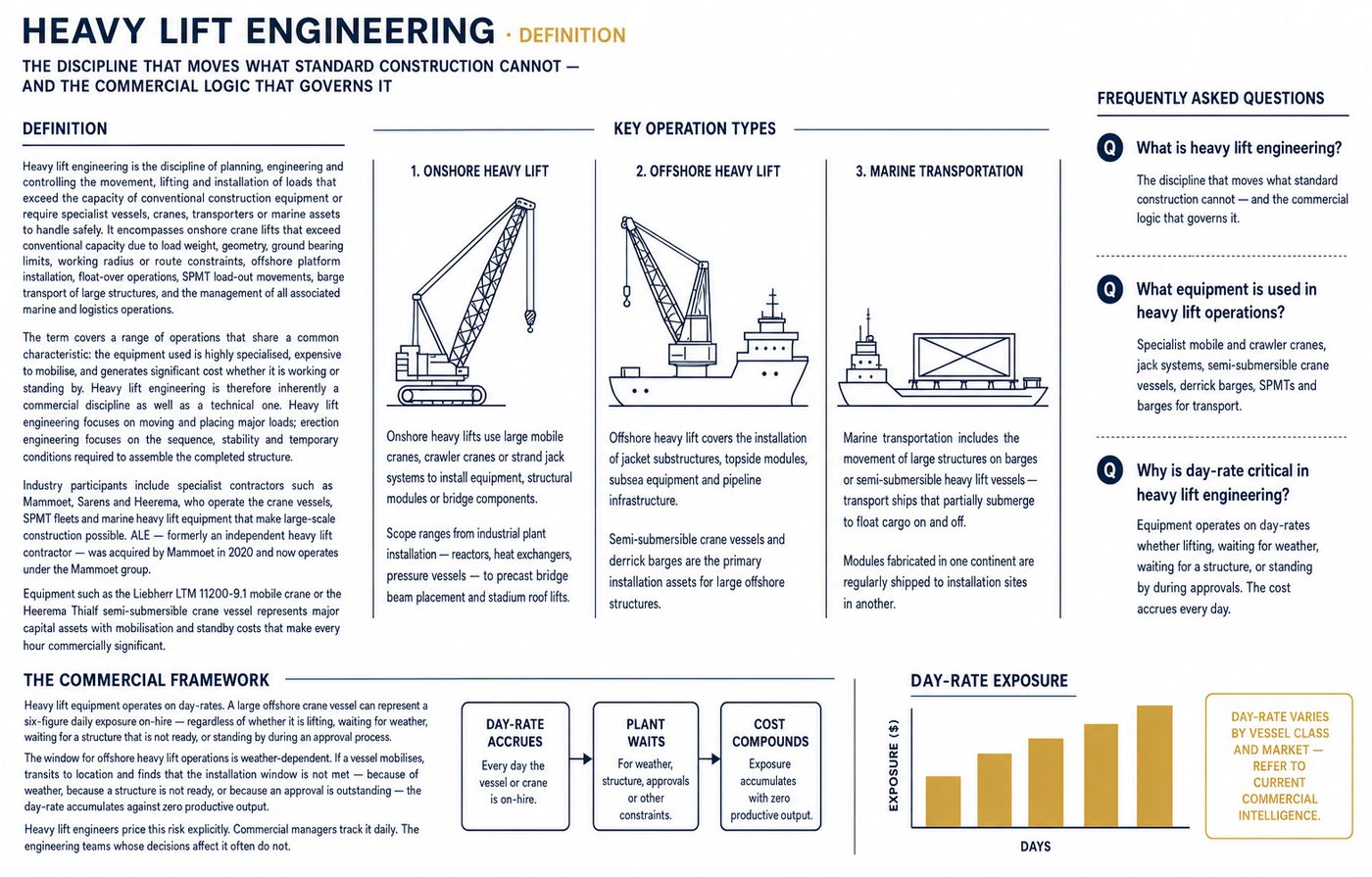

Heavy lift engineering — onshore, offshore and marine transport operation types
Original diagram — EE&HL Network 2026 · In preparation
Diagram: Original — EE&HL Network 2026
Frequently Asked Questions
Heavy lift engineering is the discipline of planning and controlling the movement, lifting and installation of loads that exceed the capacity of conventional construction equipment — requiring specialist vessels, cranes, transporters or marine assets.
Heavy lift operations use semi-submersible crane vessels, large crawler and mobile cranes, SPMT transport platforms, launch barges and semi-submersible heavy lift vessels — all operating at significant day-rates.
Heavy lift equipment is expensive to mobilise and generates cost whether working or standing by. Decisions that control standby exposure — approvals, weather windows, readiness of the receiving structure — are often made by people who do not see the day-rate.
