The Øresund Fixed Link connects Copenhagen and Malmö across 16 kilometres of strait. It opened on 1 July 2000, ahead of schedule and within budget. It is still the longest combined rail and road bridge in Europe. Those facts are well known. What is less often examined is the structural logic that made delivering it on time so improbable — and what made it possible anyway.
The project was divided into three separate design-build contracts, each awarded to a different consortium, each using a fundamentally different construction method.
Contract 1, the immersed tunnel: awarded to Øresund Tunnel Contractors at DKK 3.8 billion. The method was factory prefabrication — 20 concrete tunnel elements, each cast at a purpose-built yard at Copenhagen's Nordhavn harbour, towed out to Drogden, and lowered one by one into a pre-dredged trench on the seabed. The first element entered the water in August 1997. The tunnel reached its final metre in March 1999.

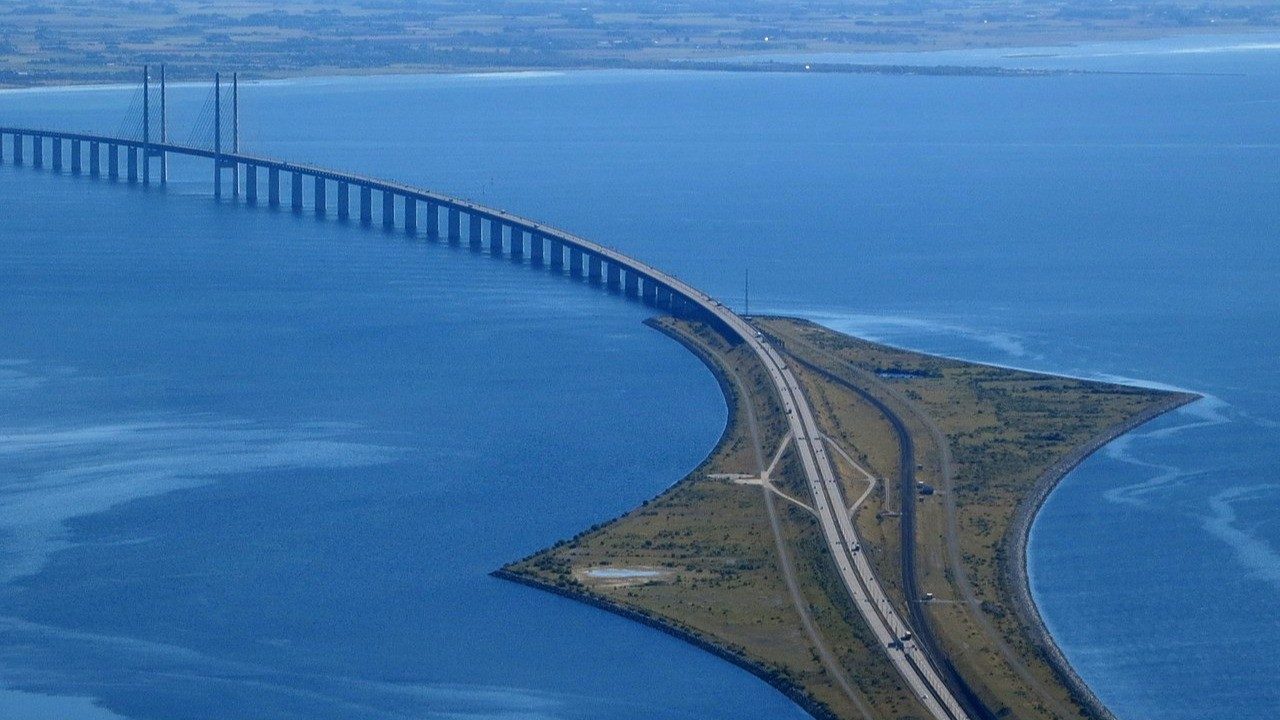

Contract 2, the artificial island of Peberholm: awarded to Øresund Marine Joint Venture at DKK 1.4 billion. The method was marine reclamation — dredge, deposit, grade. Peberholm is 4 kilometres long and 500 metres wide, constructed from rock and soil extracted during the dredging operations for the tunnel trench itself. It sits south of the natural island of Saltholm. It had to be built, stabilised, and finished to precise geometry before either the tunnel could be terminated or the bridge could begin.
Contract 3, the bridge: awarded to Sundlink Contractors — Skanska, Højgaard & Schultz, Monberg & Thorsen, Hochtief. The method was large-scale marine prefabrication combined with heavy lift placement. Concrete caissons, pier shafts, and railway deck troughs were cast at Malmö North Harbour. The pontoon crane Svanen — 8,700-tonne lift capacity — transported them to the bridge line and placed them in position. The two pylon caissons for the high bridge each weighed 20,000 tonnes, beyond Svanen's capacity; they were produced in a dry dock near the bridge site and transported by a purpose-built pontoon catamaran. The pylon legs were cast in situ at sea, rising at approximately 4 metres every eight days to a final height of 203.5 metres above the water.
Three methods. Three contractors. Three fundamentally different risk profiles and production rhythms — all converging on a single fixed geographical point: the island of Peberholm.
The tunnel had to enter Peberholm from the west. The bridge had to leave it to the east. Both needed the island to be at the right elevation, the right geometry, and structurally stable enough to receive a portal structure and a bridge abutment. The island contractor was responsible for neither the tunnel nor the bridge — but both depended entirely on what the island contractor delivered, and when.
The boundary was not a line on a map. It was a condition.
This is not an engineering coordination problem. It is a commercial exposure that contract structures do not produce by default.

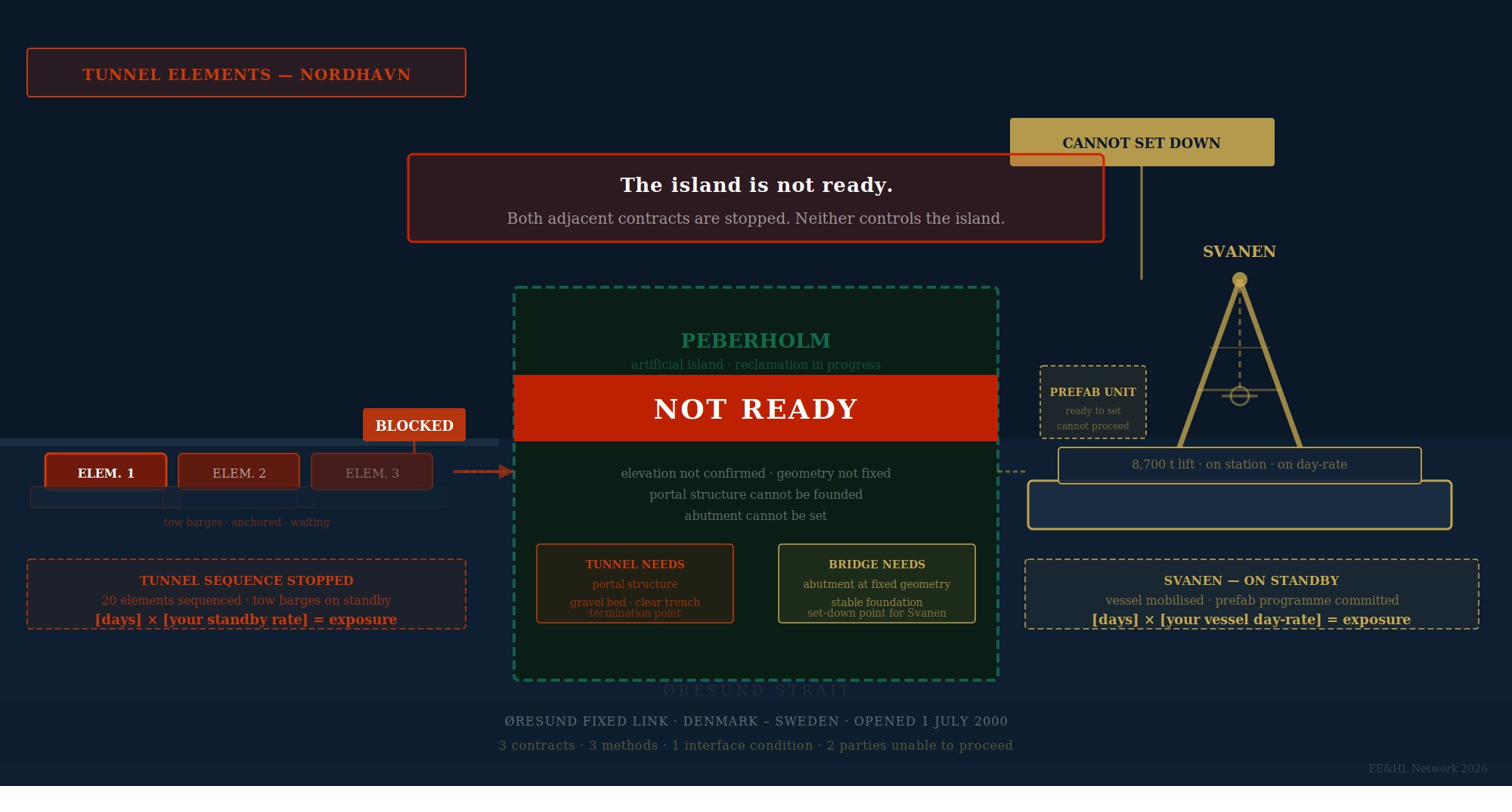

If the island was too low, the tunnel portal flooded. If the island was too high, the bridge deck geometry failed. If the island was not stable, neither structure could be founded on it. If the island was late, both adjacent contracts stopped — with Svanen already mobilised to the bridge line, and 20 prefabricated tunnel elements waiting in sequence at Nordhavn.
